ORBIT 65
CNC Bearing Grinding Machine-ORBIT 65 Internal Grinder
Dedicated Grinding Solution for Bearing Industry .

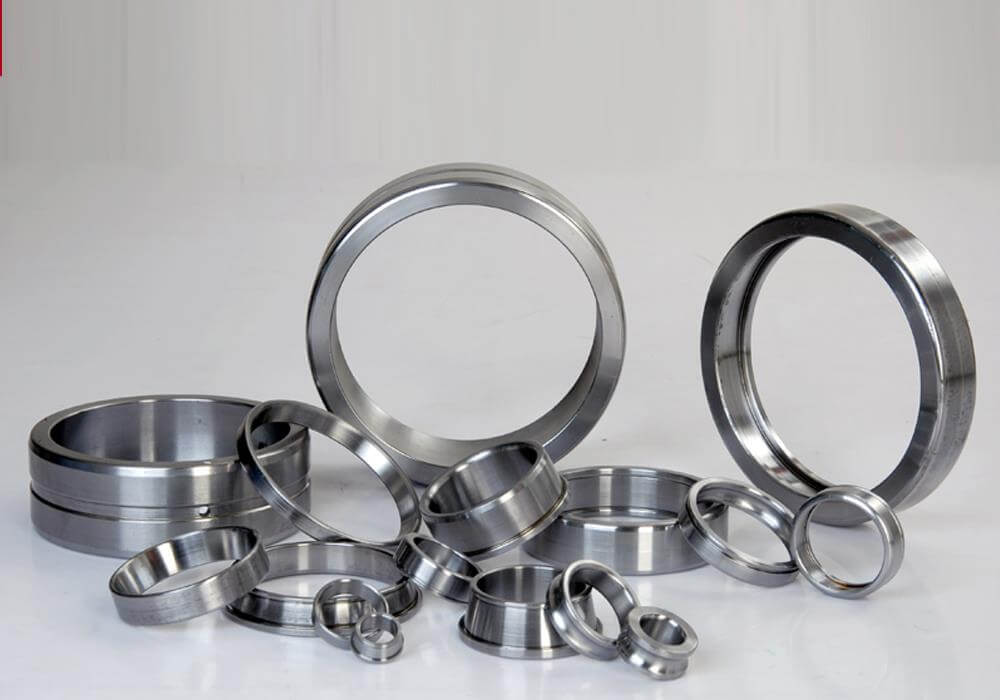

ORBIT 65 is a CNC Bearing Grinding machine suitable for grinding ID and outer race of bearings. Shoe centreless fixture is used to achieve highest precision in size and geometry. The machine is capable for high-speed grinding up to 80 m/sec wheel surface speed
The axes move on High precision Linear motion guideways for precise positioning & repeatability.
Place an enquiry Product Brochure Technical Information Note
Specifications of ORBIT 65 CNC Bearing Grinding Machine:
| DESCRIPTION | UNIT | INTERNAL GRINDER |
|---|---|---|
| CAPACITY | ||
| Max. workpiece outside diameter | MM | 65 |
| Max. workpiece width | MM | 50 |
| INTERNAL SPINDLE | ||
| Peripheral (surface) speed | m/s | 80 |
| (X-AXIS) | ||
| Slide stroke | MM | 50 |
| Rapid feed rate | MM/MIN | 15,000 |
| ( Z AXIS) | ||
| Table stroke | - | 250 |
| Rapid feed rate | MM/MIN | 20,000 |
| WORKHEAD | ||
| Spindle speed (infinitely variable) | RPM | 300-1500 |
Note: All specifications and design subject to alteration without notice.
