CNC Heavy Duty Grinder HGrind630x2500
µPrecision in Large Part Grinding

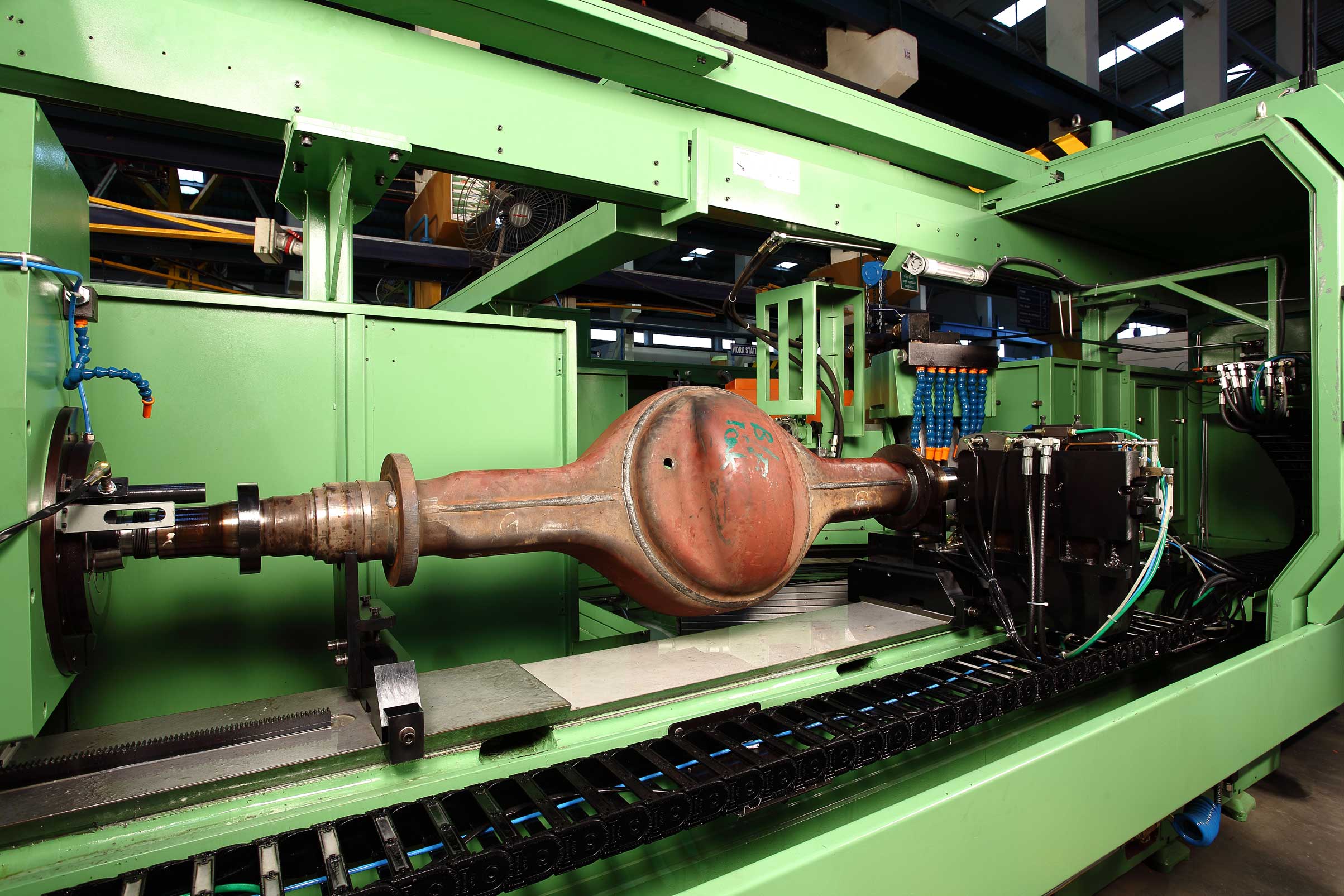

The H Grind 630x2500 is the solution for grinding of Large & heavy parts like Axle Beam, Large Ball Valves, Turbine Shafts, crankshafts, earth moving & construction parts etc. It can grind parts up to 3000mm in length, 630mm in diameter & weighing up to 750 Kilograms.
- Up to 60m/sec Grinding wheel speed.
- Single piece cast iron Bed structure.
- Wide grinding wheel up to 250mm. Place an enquiry Product Brochure Technical Information Note
Salient features of this machine:
Specification of H Grind 630x2500
| Specifications | H Grind 630x2500 |
|---|---|
| Swing over Table | 630 mm |
| Grinding Ø | 500 mm |
| Admit between Centers | 2500(3000)mm |
| Grinding length | 1200(2500)mm |
| Max.Workpiece Weight with Steady Rest | 750 kg |
| Max. Wheel Size | Ø760 x Ø304.8 x 250 mm |
| Wheel cutting speed | 45 (60) m/sec |
| Wheel spindle motor power | 22(30)kW |
( ) Optional Feature
Note: All specifications and design subject to alteration without notice.
