CNC Production Internal Grinder

This is a compact machine for high precision internal bore & face grinding of components in medium to High Production volumes. Suitable for small components like connecting rods, bushes, fuel injection parts etc. The machine is capable for grinding with CBN or conventional abrasives, tooled up with Belt driven or High Frequency Spindles (option) for optimum productivity.

Place an enquiry   Product Brochure   Technical Information Note

Specifications of IG-50 CNC CNC Production Internal Grinder

Specifications	IG 50
Max. Rotating Diameter of component	120 mm
Max./Min. Grinding Diameter	50/5 mm
Max. Grinding Length	70 mm
Max. Component Weight	50 Kg

( ) Optional Feature

Note: All specifications and design subject to alteration without notice.

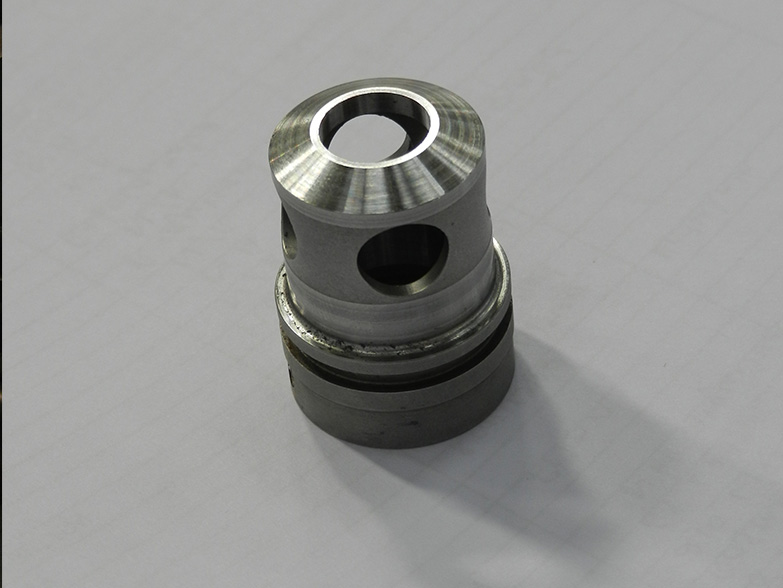

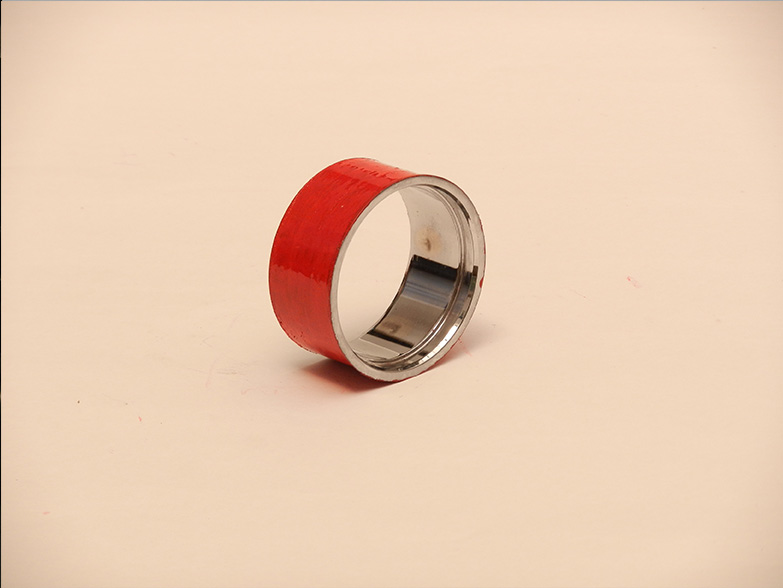

Typical Workpieces that can be ground on IG 50
